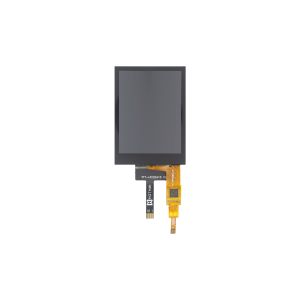

2.8 Inch Capacitive Touch TFT LCD Display SPI 240x320 with ST7789 Driver IC

TFT-H028A16QVIST4C10 | 2.8 Inch Capacitive Touch SPI TFT LCD Display 240x320 with ST7789 Driver IC

TFT-H028A16QVIST4C10 | 2.8-inch 240x320 SPI TFT capacitive touch display | ST7789 control chip | IPS full-view LCD

TFT-H028A16QVIST4C10 is a compact and reliable 2.8-inch color liquid crystal display module (LCM). The screen resolution is 240x320 pixels, which can present delicate image content and vivid and full color performance. It is suitable for various embedded application scenarios that require high-quality image display.

The driver chip of this model is the ST7789 chip, which has significant advantages in display applications. It has high cost performance, supports rich color display (usually 262K colors), has a high-speed SPI interface for fast refresh, relatively low power consumption, simple and easy to integrate drive circuit, and can work stably under a wide voltage, becoming a common drive solution for small and medium-sized TFT screens. This model is an upgraded version of the display TFT-H028A16QVIST5N10, with capacitive touch function, providing users with more flexible choices. The touch screen uses the GT911 control chip and has a 5-point touch mode. The touch experience is smoother and the response speed is faster. It is a good choice for touch display solutions.

This model does not come with a driver board. Users can freely develop driver boards and main control boards according to actual conditions. The product supports platforms such as Arduino, Raspberry Pi, LVGL, and STM32. If you lack development capabilities, we also provide this product with a driver board 2.8-inch SPI TFT module HTM-TFT028A16-SPI, or 2.8-inch smart display module HTM-H028A16-USART-ST V2.0. Are these styles not suitable? We have many models of 2.8-inch TFT LCD display screens, and there is always one that meets your needs.

• ITEM	PARAMETER DESCRIPTION	UNIT
  TFT series	TFT-H028A16QVIST4C10
  Diagonal size	2.8”	Inch
  Resolution	240x320	Dot
  Dimensions	50.0x69.2x3.95	mm
  Active area (AA)	43.2x57.60	mm
  LCD type	2.8” TFT Module	mm
  Display viewing angle	Full View
  Aspect ratio	4:3
  Backlight type	LED white
  TFT driver IC	ST7789
  Brightness	400cd/m2	cd/m2
  Operating temperature	-30~80℃	℃
  Storage temperature	-30~85℃	℃
